Filling and Packing Machines / Metal Tanks / Water Treatment

Automatic vertical form fill-and-seal packaging machines The Beta-pack has proved extremely successful in the packaging of products such as sweets, rice, sugar, peanuts, powders, breakfast cereals, maize products, tea, coffee granules, and hardware components. The machines are easy to use and require the minimum of maintenance.

Filling Systems

• Multi-head weigher
• Auger doser
• Automatic weigh system
• Electronic counter
• Volumetric cup doser
• Bucket elevator

Dimensions
1200 mm wide x 1800 deep x 1650 mm high (floor to top of product tube)

Electrical data
380 V, 3 phase, 50 Hz

Compressed air
380 litre/min at 550 kPa

Mass
990 kg

Machine capacity
Up to 110 packs per minute (depending on bag length and product)

Pack size limits
Max. flat bag size: 260 mm wide x 350 mm long.Min. flat bag size 70 mm wide x 80 mm long. Other bag sizes available on request.

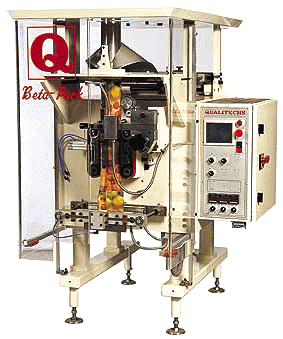

The Beta Pack packaging machine
Features full touch screen programmable logic control (PLC) of all machine functions - bag speed, bag length, print registration, overprinter, product call, no product - no bag, vertical and horizontal seal tempertures and dwell times (dual heating systems available), average bags per minute, and filled bags counter. The PLC automatically monitors jaw obstructions, film breakage, print registration, overprinter tape run-out, packaging material run-out, and safety guard circuits. The packaging material reel and support frame move as one complete unit, preventing the waste of valuable packaging material. The horizontal and vertical seal systems run on hardened shafts and linear ball bushes for a long and trouble-free life. The machines are low-profile and so reduce gantry height to a minimum when linked to filling systems. They have a low product-drop from the top of the bag former to the horizontal jaws, making them ideal for high speed running and fragile products. The machines are available in single or twin versions to give maximum use of the production area and the output speeds of modern multi-head wieghing systems. Packaging speeds of up to 110 packs per minute can be achieved, dependent on pack size, product, and packaging material. The machines can be linked to a wide varity of fillers. These machines are suitable for packaging foods, confectionery, powders, and hardware products.

Optional extras
Rotary pack-off tables
Gas flushing
Gusseting
Date coding and printing
Block-bottom facility
Euro -slot jaws
Hole punching
Strip pack facility
Perforation cut and count
