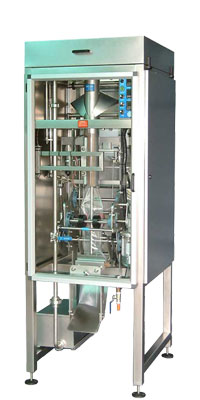

FMI Standard Form, Fill & Seal Machine
...for liquids.

Our original electro-mechanical machine for the packaging of liquids such as milk, juice, water and yoghurt. Produces top quality sachets with strong seals and excellent volume accuracy. The positive displacement pump will suck the product from the low mounted built-in balance tank, therefore no elevated holding tanks are necessary.
The very robust construction and simplified mechanism require very little maintenance. All parts such as motors, bearings and electrical components are standard off the shelve. Specialized parts such as seal elements are available from us at very low cost.

Specifications:

Power Supply: 230V Single Phase
Air Supply: None
Dimensions: 1900H, 720W, 800D
Mass: 250kg
Pump Volume Range: 0ml to 1100ml
Vertical Seal: 300W Constant Heat
Horizontal Seal: 300W Impulse
Film Roll Size: 320mm wide, 20kg, 80/90 micron
Sachet Size: 150mm Layflat up to 250mm long (adjustable)
Construction: 304 Stainless Steel
Speed: 1 Liter - 1800/Hour250ml - 3000/Hour
Main Drive Motor: 0.55kW
Film Feed Motor: 0.18kW
Included: UV Sterilization Lamp, Date Stamp
