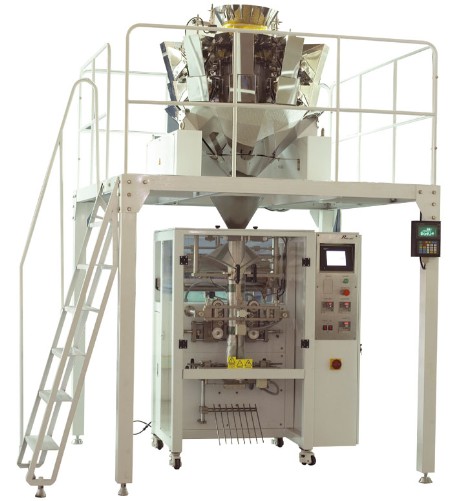

Pack Machine EP-120
PACKALL MACHINES
MODEL EP-120
COMBINATION WEIGHERS PACKAGING MACHINE
Applications:
CANDY, BISCUIT, POPCORN, RICE, COFFEE BEAN, SUGAR, SALT.
| Model | EP-120 |
| Specifications | |
| MAXIMUM WEIGHT |
1000 Grams |
| WEIGHING RANGE | 50–1000 grams |
| WEIGHING SPEED | 50 – 100 packs/minute |
| PACKING SPEED | 50 – 80 packs/minute |
| TYPE OF POUCHES | PILLOW TYPE |
| WEIGHING ACCURACY |
+/- 0.3 – 1.5 Grams |
| BAG SIZE | Maximum of film width 450mm X 360mm (S type) Maximum of film width 760mm X 760mm (M type) |
| PACKING FILM | Any heat-sealable laminated film or Mono-Polyesthyene. |
| PNEUMATIC PRESSURE |
7 KG/CM2. |
| ELECTRICITY | 220V,Single Phase,50/60HZ |
| MACHINE WEIGHT | N.W.: 550 Kgs. G.W.: 630 Kgs. |
| MACHINE DIMENSION |
1340 X1000 X 1220mm (L x W x H) |
| Optional Components | |
| 1.Auto Feeding system: With conveyor to carry product from low to upper until hopper machine and automatically stop carrying products when the hopper is full and will work again when the products in hopper are insufficient. |
|
| 2.Coder: To print manufacturing date and expire date | |
| 3.Discharge Conveyor | |
| 4.Side Gusset | |
| 5.Compressor required |
