Pack Machine EP-24

PACKALL MACHINES

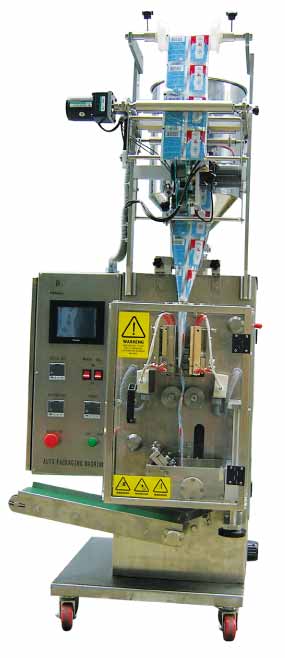

MODEL EP-24
Liquid & Paste Products Filler

Applications
Beverage? Minerals Soy Sauce? Medical solutions ?Mustard? Honey? Salad Sauce?Shampoo or other similar products.

Model EP-24
Specifications
Packing Capacity 1–50 grams
Size of Pouches 25 – 75 mm (wide) X 40 – 120 mm (long). Adjust the
pouch length free of changing any parts.
Packing Speed 40 – 60 packs/minute.
Types of Pouches 3 side and 4 side sealing.
Packing Film OPP+PE, CPP+PE, Aluminum foil, Paper + PE and any
heat-sealable laminated film.
Motor 1/4HPx1pc
Power Consumption 1.2 KW
Electricity 220V,Single Phase,50/60HZ
Machine Weight N.W.: 250 Kgs. G.W.: 300 Kgs.
Machine dimension 950 x730 x 1700mm (L x W x H)
Optional components
1.Coder
To print manufacturing date and expire date.
2.Auto feeding system
