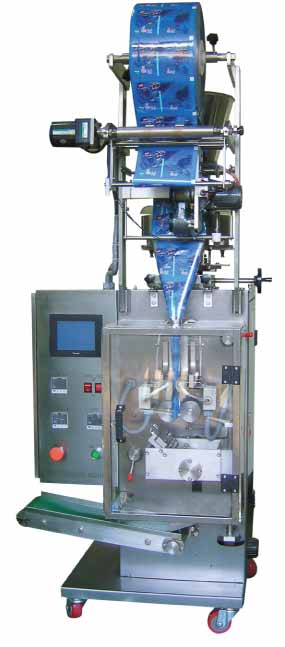

Pack Machine EP-25
PACKALL MACHINES
MODEL EP-25
TELESCOPIC MEASURING DISC
with PLC TOUCH SCREEN
Applications
Sugar, Salt,Pepper,Coffer, Tea... And similar granule or powder producs.roducts.owder products.
| Model | EP-25 |
| Specifications | |
| Packing Capacity | 1–30 grams |
| Size of Pouches | 25 – 75 mm (wide) X 40 – 120 mm (long). Adjust the pouch length free of changing any parts. |
| Packing Speed | 40 – 60 packs/minute. |
| Types of Pouches | 3 side and 4 side sealing. |
| Packing Film | OPP+PE, CPP+PE, Aluminum foil, Paper + PE and any heat-sealable laminated film. |
| Motor | 1/4HPx1pc |
| Power Consumption | 1.2 KW |
| Electricity | 220V,Single Phase,50/60HZ |
| Machine Weight | N.W.: 250 Kgs. G.W.: 300 Kgs. |
| Machine dimension | 950 x730 x 1700mm (L x W x H) |
| Optional components | |
| 1.Coder | |
| To print manufacturing date and expire date. | |
| 2.Auto feeding system |
