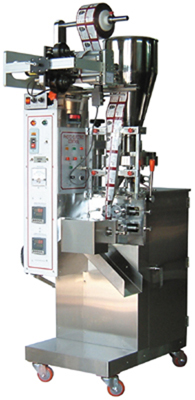

Pack Machine EP-26

PACKALL MACHINES

MODEL EP-26
DRY PRODUCTS FILLER

Applications
Sugar, Salt,Pepper,Coffer, Tea... And similar granule or powder products.



3-Side type

4-Side type

Pillow type

Model EP-26
Specifications
Motor 1/4HPx1pc
Heating Elements 250Wx2pcs,300Wx2
Power 220V,Single Phase,50/60HZ
Packing Film OPP+PE, CPP+.PE Aluminum Foil. Paper+PE and other
Heat-Sealable Laminated Film.
Types of Pouches 3-Side, 4-Side, or Pillow types
Packing Size S Type: 20-80mm(Wide), 40-130(Long)
M Type: 90-140mm(Wide), 130-200(Long)
Speed About 30-80 Pouches per minute.
Machine Weight S Type: N.W 345kgs. GW.400kgs M Type: N.W 420kgs.
GW.485kgs
Machine Size S Type: 20" x 22" x 60" M Type: 31" x 28" x 73" (L x W x
Optional components
1.COMPUTING
SELF-DIAGNOTIC
SYSTEM
This system will automatically alarm, show and stop the
machine. When the machine is out of order, will
facilitate the maintenance and avoid failure of the
products. The detail as follows:
A. No packaging film.
B. No packing product.
C. Heating Elements are damaged.
D. Auto. Temperature Control:
For example: If the sealing temperature is 80?, you can
set up + - 2? for packaging. Once the temperature is out
of this range, the machine will alarm and stop working.
E. Set Batch Number:
You can also set up the quantities as you will need.
When it reaches the quanities you have set up, the
machine will alarm and stop running.
2.THE AUTOMATIC BAG LENGTH ADJUSTER
Easily to Change of the bag length without using any
parts. And digitally show the length as well.
3.CODER: To print manufacturing date and expire date.
